Differential Signal Transfer Module - SG400

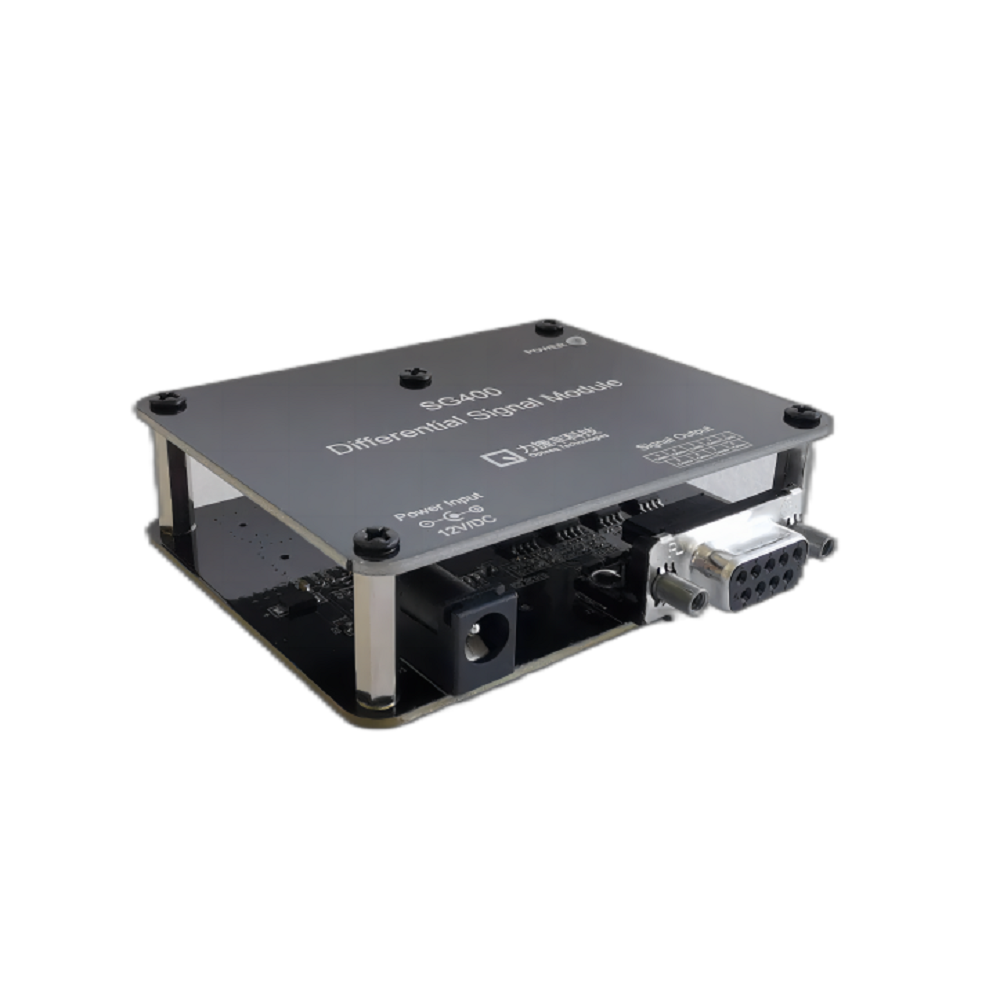

Differential Signal Transfer Module – SG400

SG400 Accessory for Programming Melexis MLX81116/MLX81143, ELMOS E522.49/E522.94, etc.

October 28, 2023Accessories Products Signal Transistor 323

Input InterfaceDirectly plugged into the output interface of SG400
Output InterfaceDB9 interface (9-pin D-type connector)
Output SignalDB9 interface contains 4 sets of CAN interfaces
External Power Supply12V DC

Elmos Melexis SG400 Accessories

Since some chips programming interfaces use CAN PHY to transmit data (such as MLX81116, MLX81143, E522.49, E522.94, etc.), OPTEEQ SG400 is a universal programmer and requires an adapter module for signal conversion to support chips with special interfaces.
