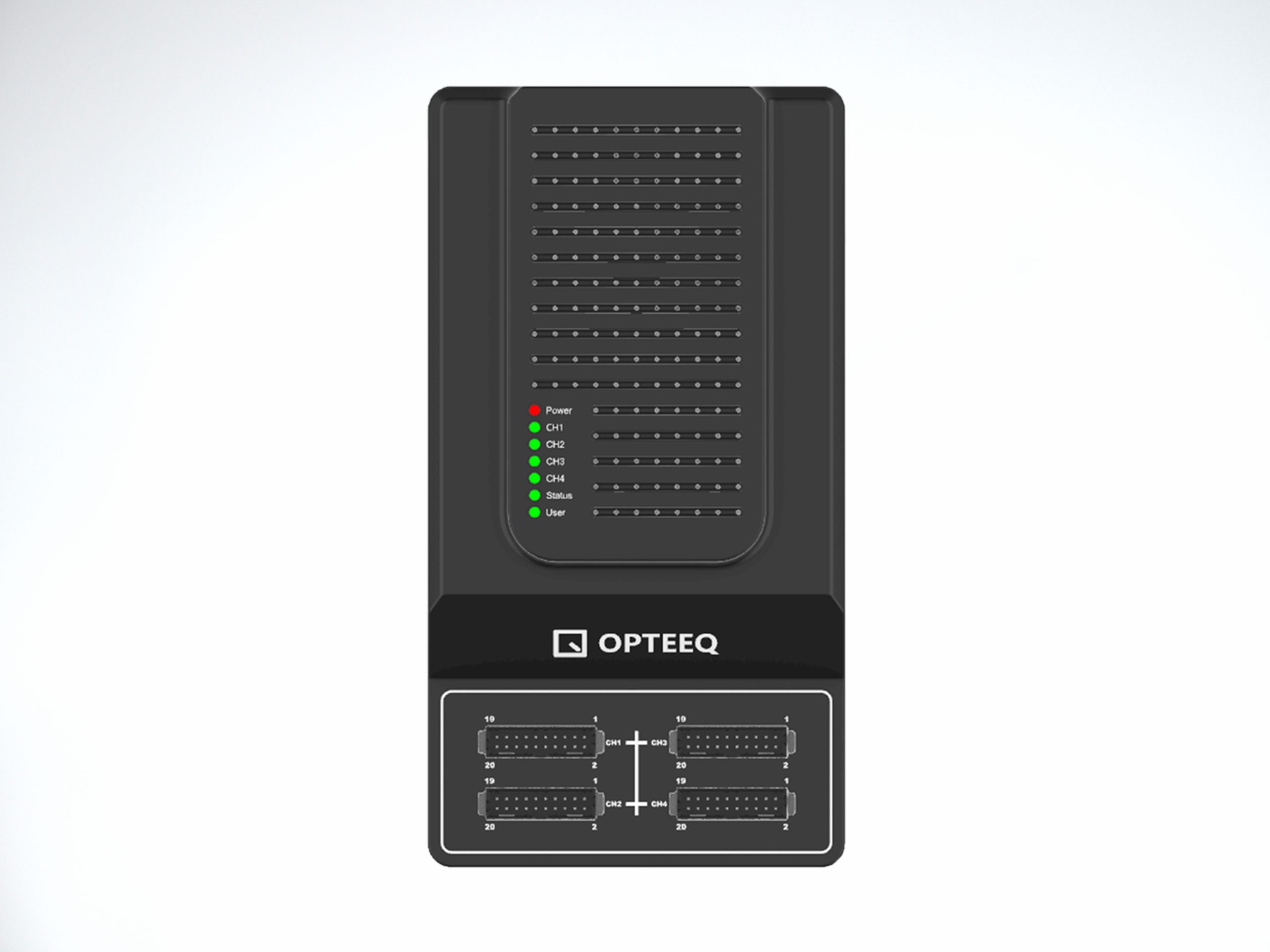

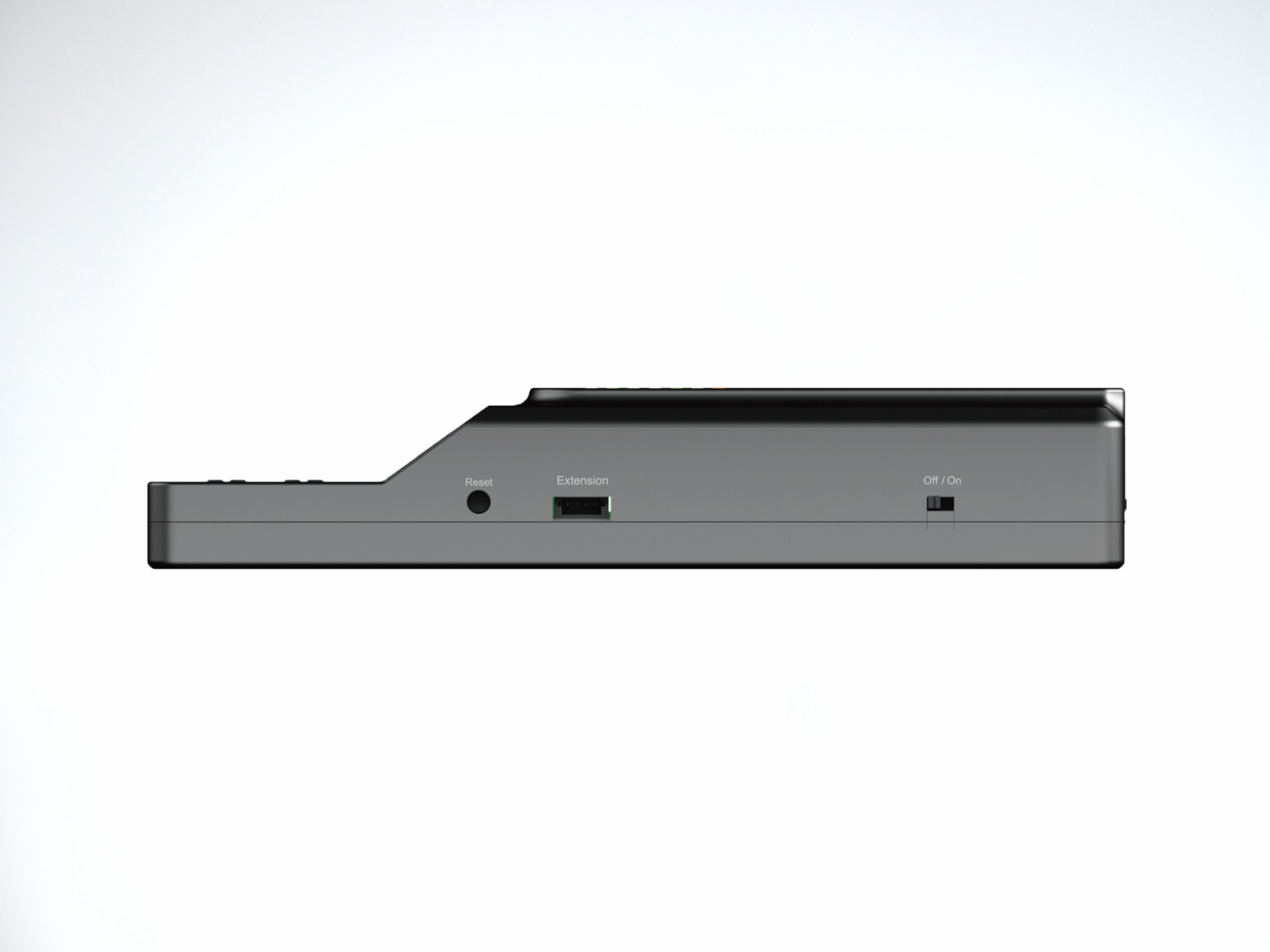

OPTEEQ SG400E

Universal In-system Gang-programmer

Programming SpeedBuilt-in newly designed programming engine, the speed is up to three times that of the previous generation product
ChannelThe four channels are completely independent, and different channels can program different chips at the same time
Parallel OperationFlexible combination of programmer module + HUB, up to 32 chips can be programmed at the same time
NetworkSupport 10/100/1000M Ethernet connection
Power Supply12-24V/DC independent power supply
StorageSupport 256G SD card
Dimension161mm x 86mm x 30mm, compact and easy to be integrated
Signal ControlControl full-module signal integrity
Electrical IsolationExcellent electrical isolation performance from external environment
ExtensionEMMC and NAND Supported
Circuit protectionAdded VCC/VPP fast discharge and dual overload protection
