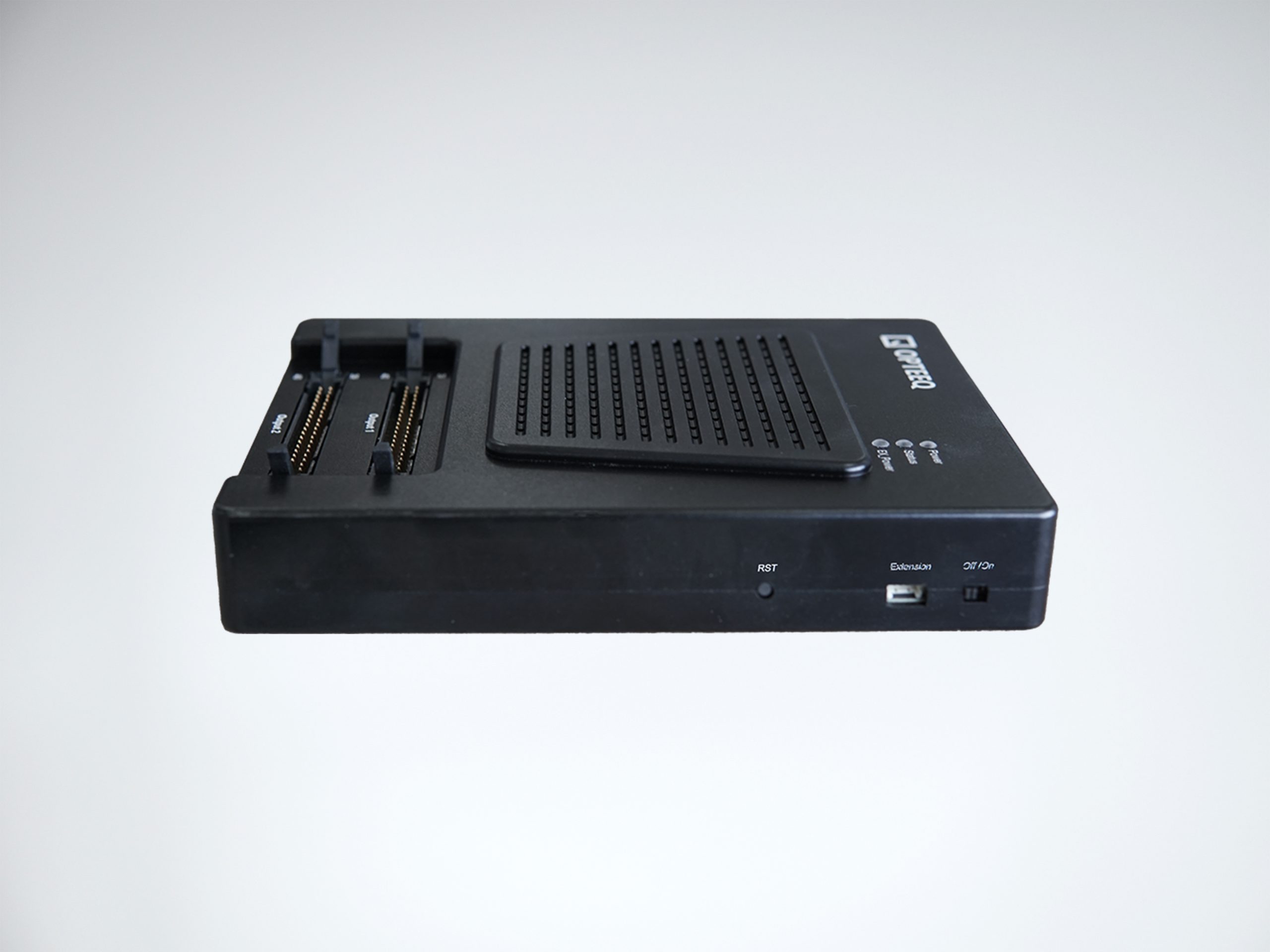

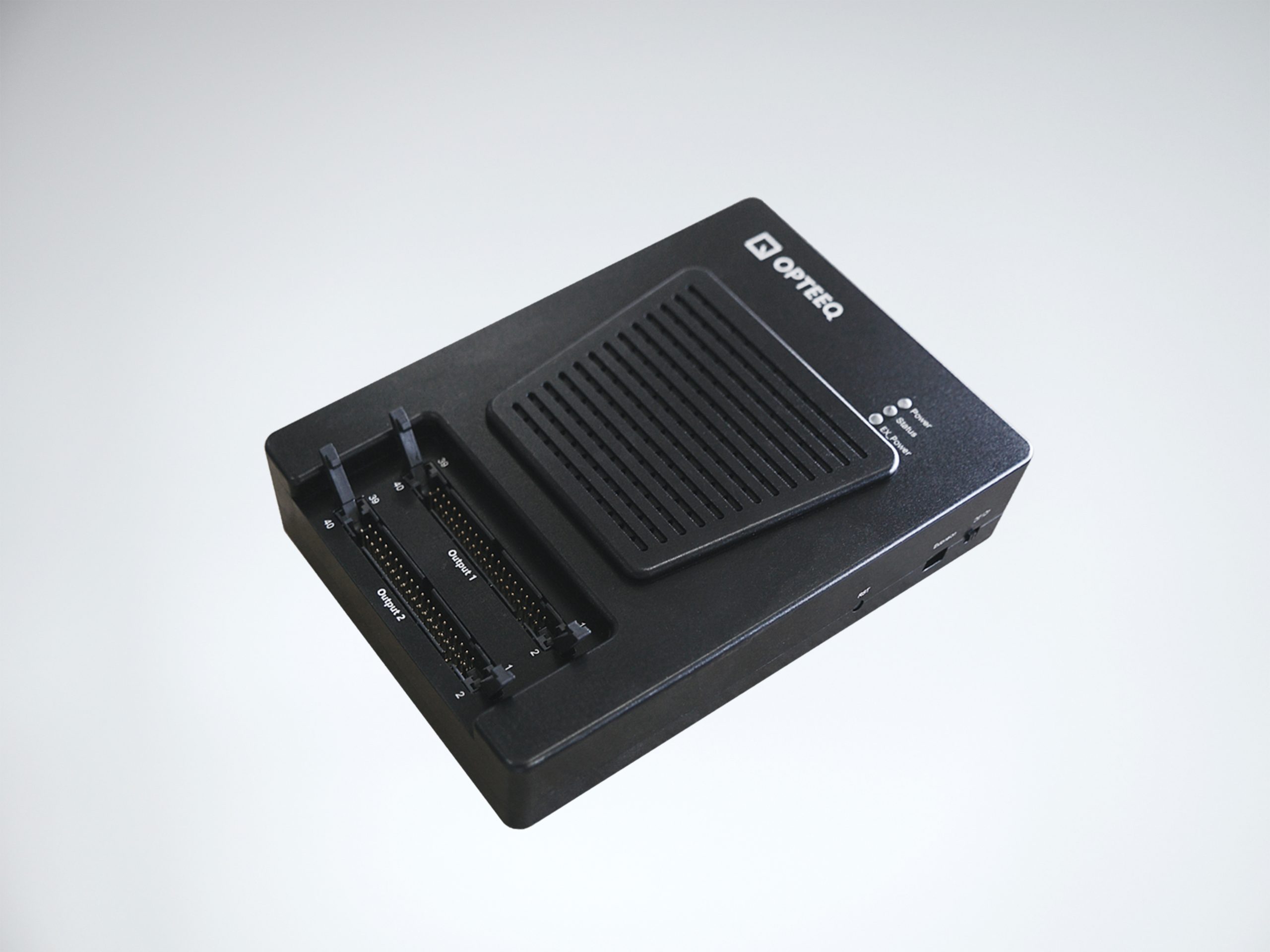

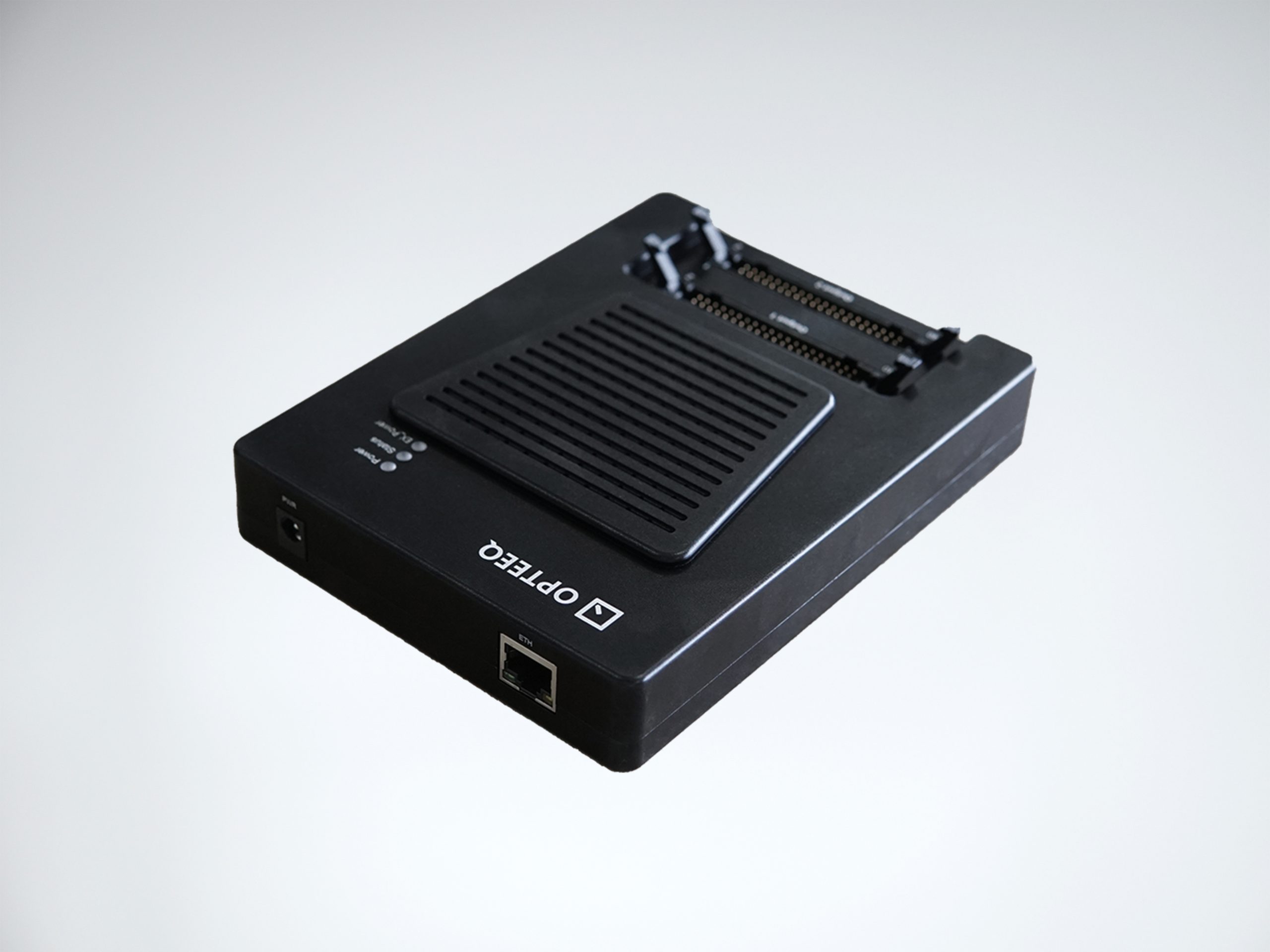

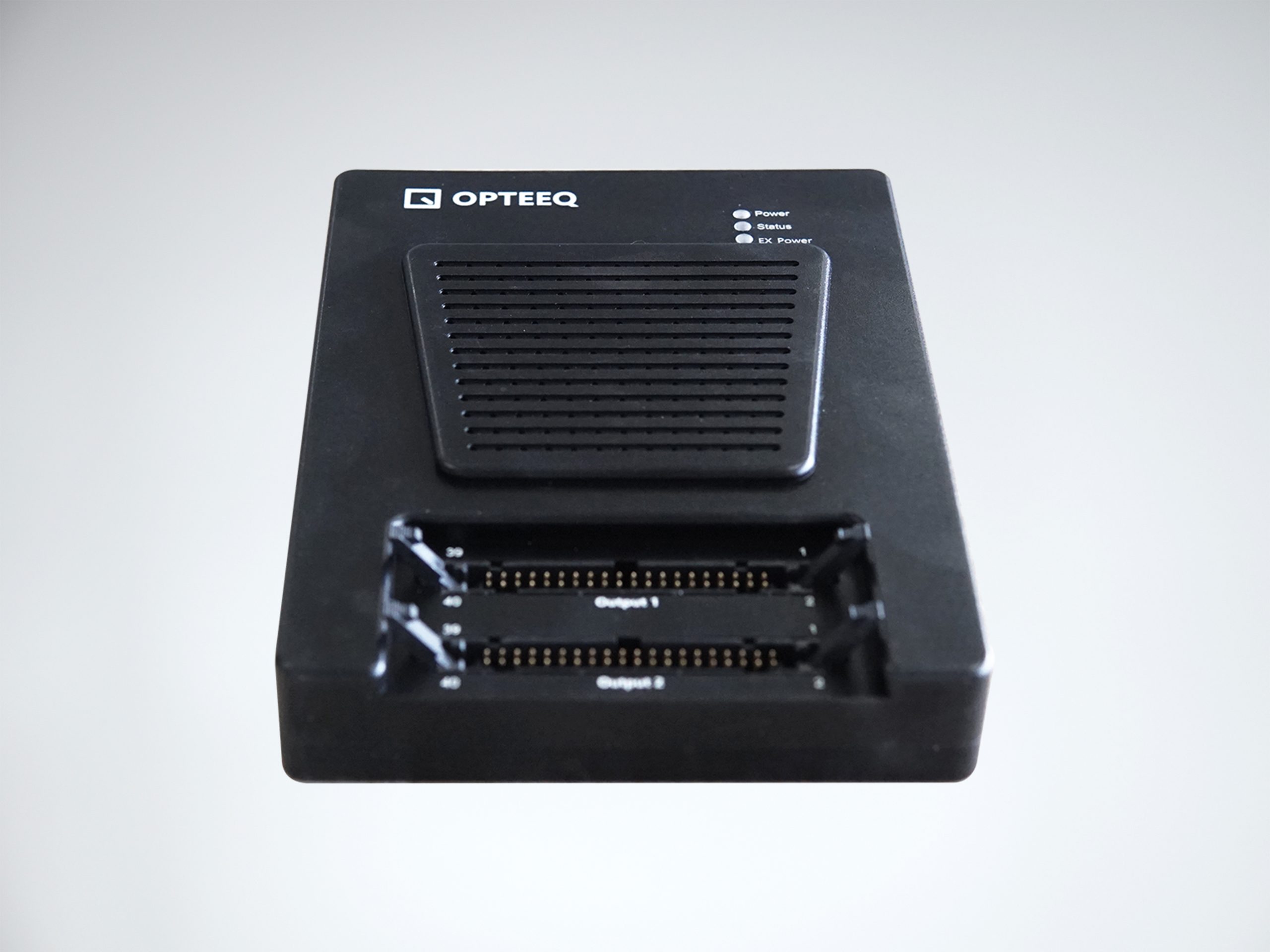

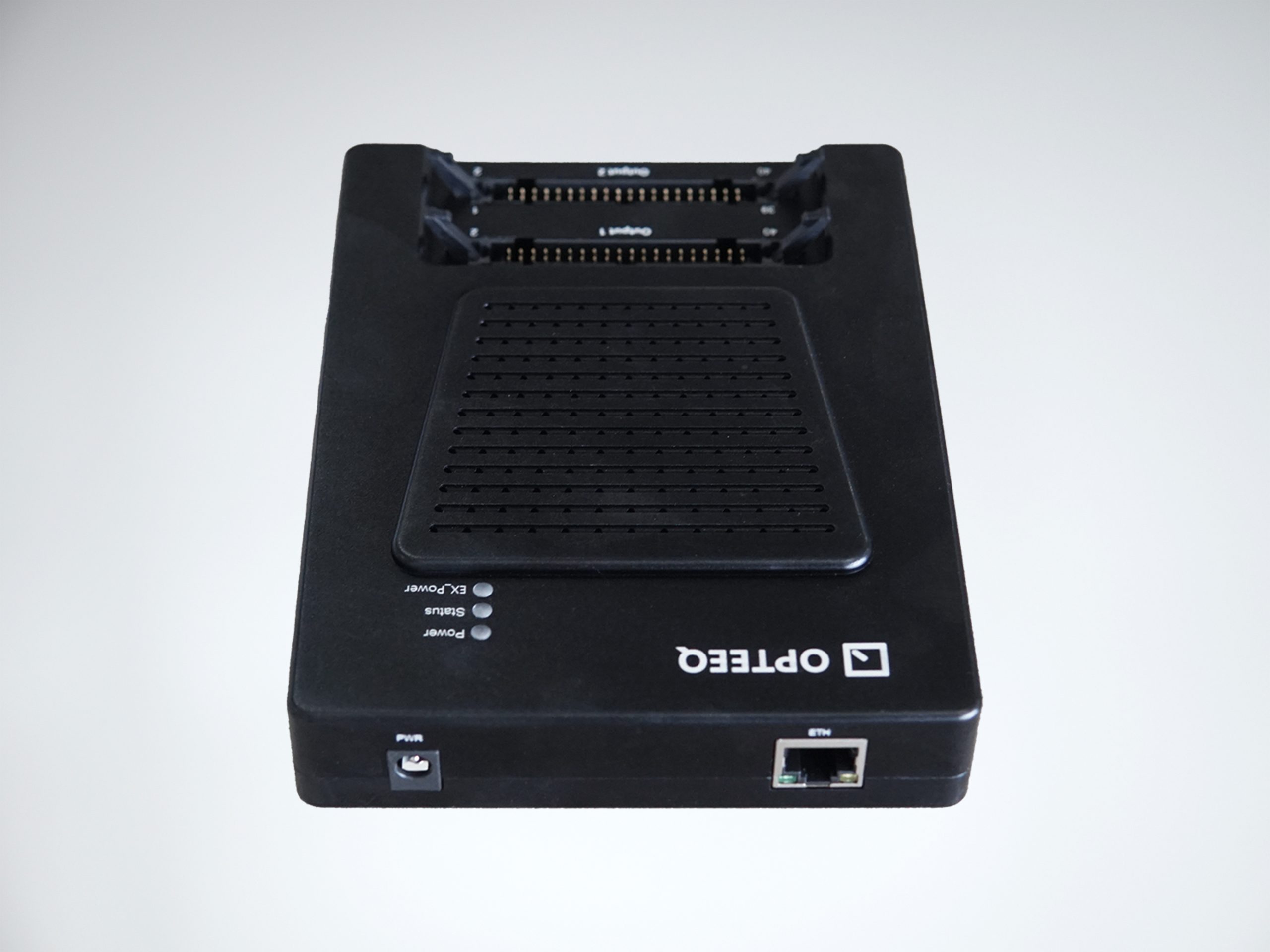

OPTEEQ T3016

PPM/FastLIN/LIN Supported Gang-programmer

Numbers of ChannelsSupport programming 16 chips at the same time
PPMSupported, the baud rate can be set up to 300 kbps
FastLINSupported, the baud rate can be set up to 150 kbps
LINSupported, LIN bus master-slave mode is adjustable, baud rate can be set up to 20kbps
Hardware FeaturesDual-core CPU (A9), 1G memory, 667MHz frequency, SD card maximum 256G
NetworkSupport 10/100/1000M Ethernet
Dimension160mm x 120mm x 29mm，compact and easy to be integrated
Operating SystemWindows, Linux supported
CompatibilityThe host computer software is compatible with OPTEEQ SG400 series
ScalabilityProvides DLL and API functions to facilitate secondary development
Software RoutinesProvide routines in C, C#, Labview and other languages
TraceabilityProvide complete log records with timestamps to facilitate production management and problem tracing
Process ControlSupports scripted process control to facilitate users to implement special programming processes
